automotive interior car door panel mould

Customized auto door panel mould,auto parts door panel mould manufacturer of china. More than 500 automotive parts molds be exported to more than 20 countries per year, about door panel mould price, material,size,pictures,factory, contact Seaco to know mo....

Send Inquiry
OEM Customized auto door panel mould,auto parts door panel mould manufacturer of china. More than 500 automptive parts molds be exported to more than 20 countries per year, about door panel mould price, material,size,pictures,factory, contact Taizhou Seaco to know more.

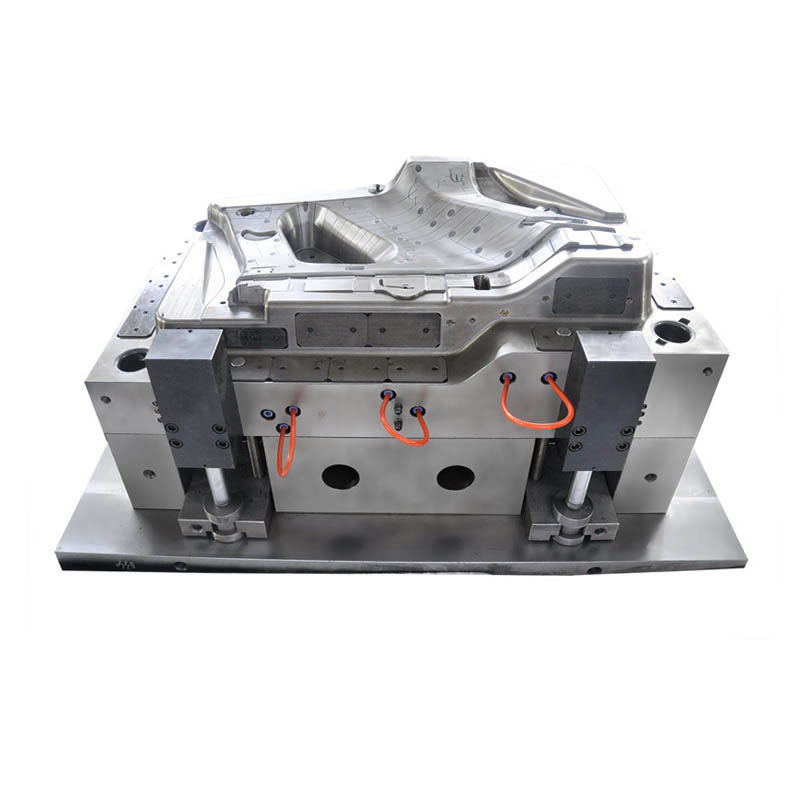

Car door panel mould

  • product material:  PA+30GF
  • mold analysis:  Moldflow before mold design
  • mold design:  3D format in STP, X_T or IGS, 2D design in dwg, or pdf
  • mold steel:  cavity 718H,P20H, 2738, 1.2312; core718H, 2738, NAK80.
  • mold cavity: 1 cavity or more
  • mold standard parts:  HASCO, DME, PUNCH,JINGHONG.
  • hot runner:  YUDO, INCOE, Synventive, DME, MOLD-MASTERS,
  • injection gate:  edge gate or point gate
  • Steel treatment:  Vacuum quenching, or nitride
  • product size: 1150*550*650mm
  • Injection machine: 1000T
  • Cycle time: 60S
  • Works schedule:  5days design-3days prepare-45days machining-5days assembly, then test.
  • Mold life guarantee:  500000shots or one year.
  • Service:  30% spare parts for mold, and 1 year guarantee.
Car door panel mould




1. Automotive Parts Mold Making Process

Mold description:

High quality auto grill mold

Purchase order

Customer offer PO to confirm the order

Invoice:

We send PI for payment

Payment:

Within 3days 50%down payment by TT

Parts design

3days to modify and confirm

Mold flow

Before mold design moldflow to analysis injection

Mold design:

5days to make mold design

Confirmation:

3D mold design confirmation to start machining

Order steel:

5days steel will arrive us for machining

Rough machining

Raw steel flying knife processing to machine

Heat treatment

After rough machining

Hardness:

48-54HRC

Lifters:

Nitride with surface hardness 48HRC

Fine machine:

High speed CNC, three or five axis CNC

Fine machining

High speed engraving machining

Fine machine:

Fine EDM, wire cutting

Assembly:

3days to assembly for test

Polish:

Manual high quality process

Surface finish:

Mirror polishing to get good appearance

Other:

EDM or wire cutting texture

Ejection:

Hardness HRC55-60, run automatic

Suitable for:

Injection machine

Test:

50day after confirmation mould design

Balance:

50% balance by TT

Delivery

1-2weeks after balance and samples confirmation

Transport

By sea from Ningbo Port China



2. Why Us To Be Your Supplier for your auto door panel mould?

  1. We make more than 400 automotive moulds each year and most for foreign customers. So we have most experience and can make good quality control.
  2. We have special professional designers and mold makers for mold after making so many automotive molds.
  3. Many customers cooperate with us more than 10 years, and their loyalty shows our honest on mold.
  4. Quality is the life of our company. We focus on quality and time control. Every mould machining process will be weekly informed.
  5. Trust was built on you know better of us. Believe yourself and choose us won’t let you down. Let’s try and know you better. You need good automotive mould supplier, and what we need is a chance to show you who we are and what we can do.
Car door panel mouldCar door panel mouldCar door panel mouldCar door panel mouldCar door panel mouldCar door panel mouldCar door panel mould


3. Experice of the automotive door panel mold manufacturing
